Image-based 3D texture transfer from a single 2D reference image enables practical customization of 3D object appearances with minimal manual effort.
Adapted 2D editing and text-driven 3D editing approaches can serve this purpose. However, 2D editing typically involves frame-by-frame manipulation, often resulting in inconsistencies across views, while text-driven 3D editing struggles to preserve texture characteristics from reference images.
To tackle these challenges, we introduce 3DOT, a 3D Object Texture Transfer method based on a single reference image, integrating: 1) progressive generation, 2) view-consistency gradient guidance, and 3) prompt-tuned gradient guidance. To ensure view consistency, progressive generation starts by transferring texture from the reference image and gradually propagates it to adjacent views. View-consistency gradient guidance further reinforces coherence by conditioning the generation model on feature differences between consistent and inconsistent outputs. To preserve texture characteristics, prompt-tuning-based gradient guidance learns a token that describes differences between original and reference textures, guiding the transfer for faithful texture preservation across views.
Overall, 3DOT combines these strategies to achieve effective texture transfer while maintaining structural coherence across viewpoints. Extensive qualitative and quantitative evaluations confirm that our three components enable convincing and effective 2D-to-3D texture transfer.

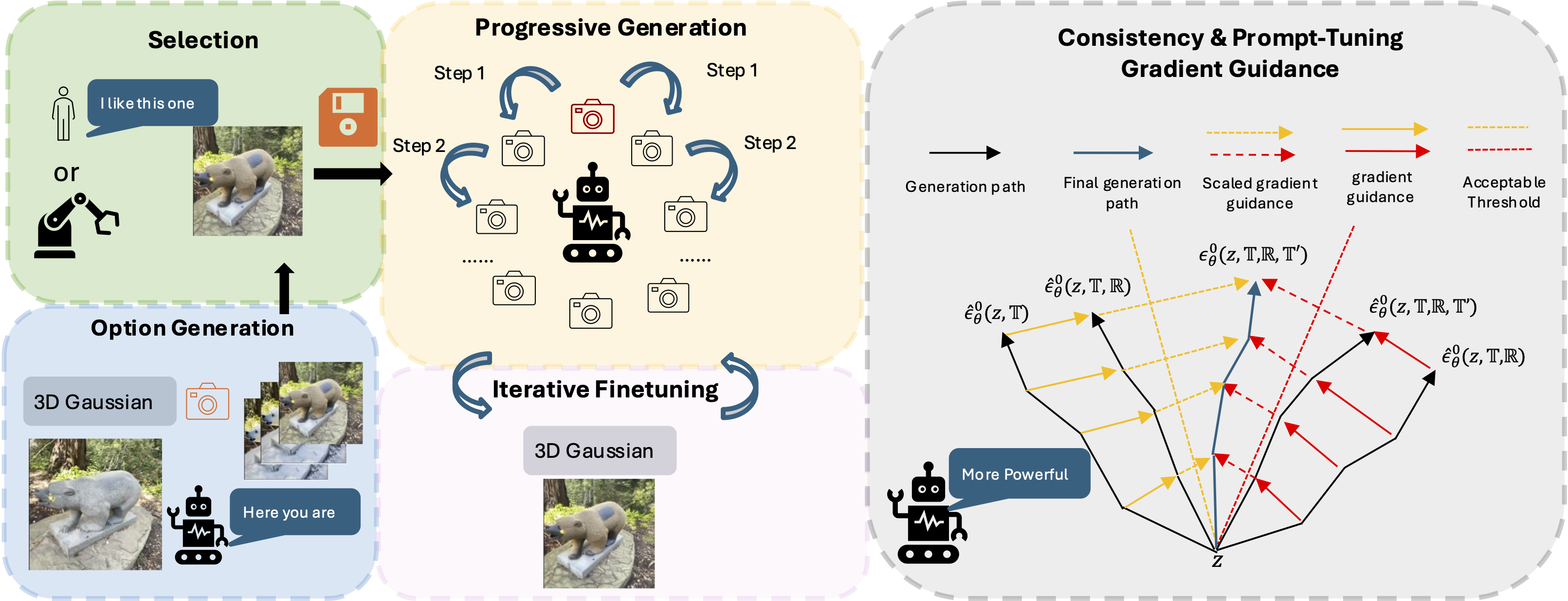

3DOT enables texture transfer from a single image to a 3D object. The left panels illustrate the selection of the reference image using a generative approach. Then, our method employs a progressive generation process guided by view-consistency and prompt-tuning-based gradient guidance to preserve both cross-view consistency and texture identity. \(\mathbb{R}\), \(\mathbb{T}\), and \(\mathbb{T}'\) denote the reference set, text prompt, and learned texture difference token, respectively.
@article{cao20253dswapping,
title={3DSwapping: Texture Swapping For 3D Object From Single Reference Image},
author={Cao, Xiao and Lin, Beibei and Wang, Bo and Huang, Zhiyong and Tan, Robby T},
journal={arXiv preprint arXiv:2503.18853},
year={2025}
}
